Safety fence for mobile concrete walls
IBO Fence 150
IBOTECHs IBO Fence 150 is the perfect visual protection and appropriate extension for mobile concrete road barriers.
Your Benefits
- Effective visual and
climb over protection - Overall height including
mobile barrier is 1.5 meters - Successfully tested
for DIN 1317 - Simple structure without ground anchoring
Mobile concrete road barrier
IBO Fence 150

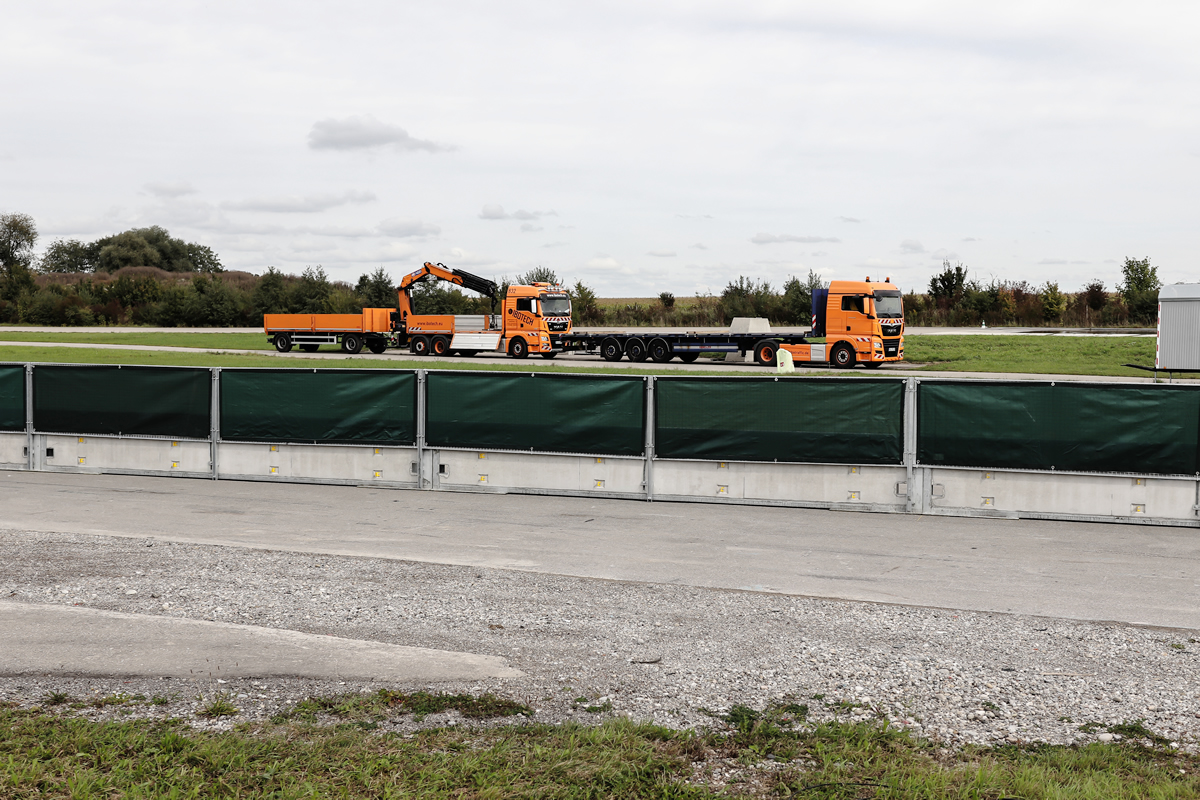

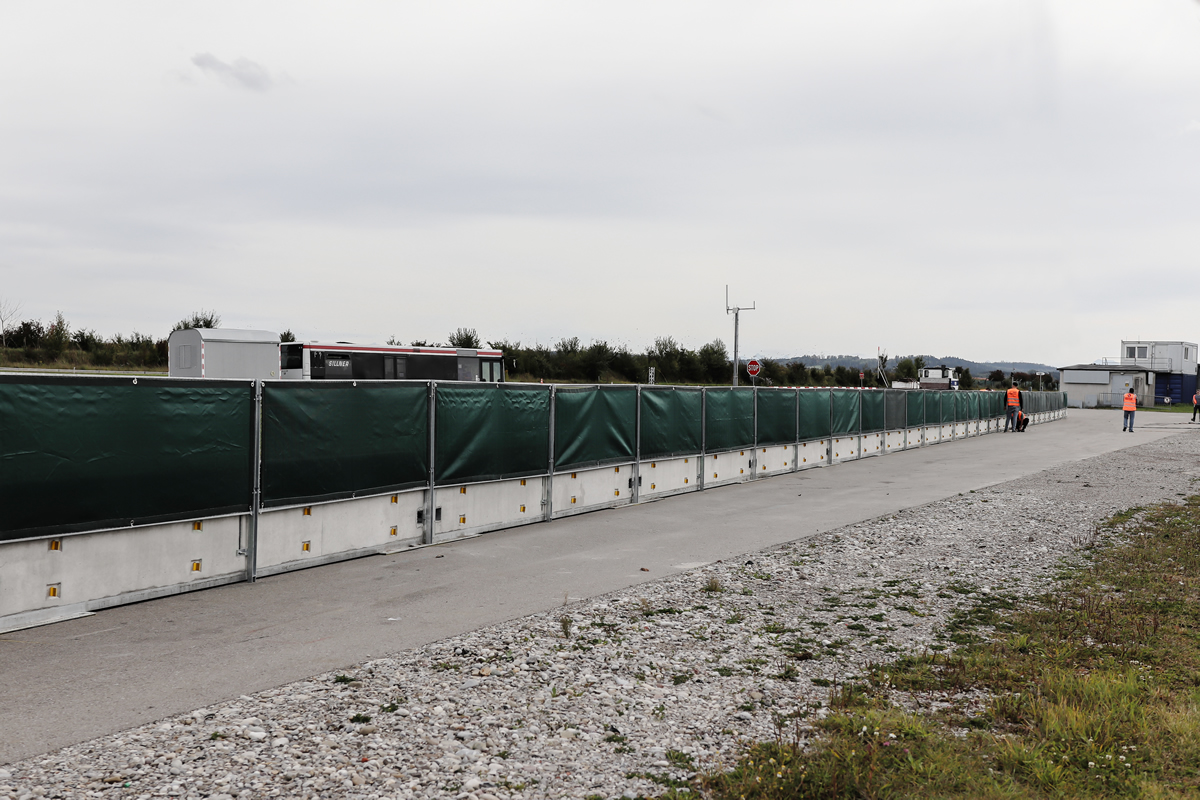

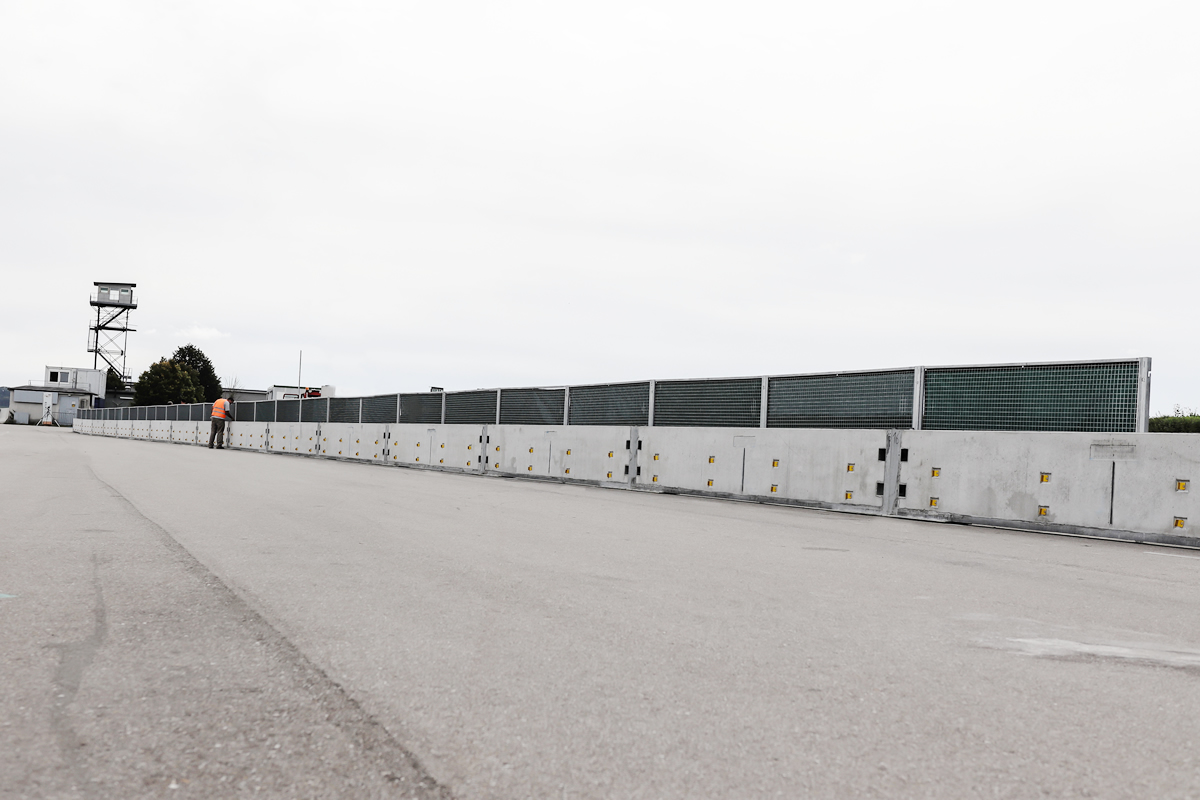

The safety fence IBO Fence 150 expands the innovative product portfolio of IBOTECH.

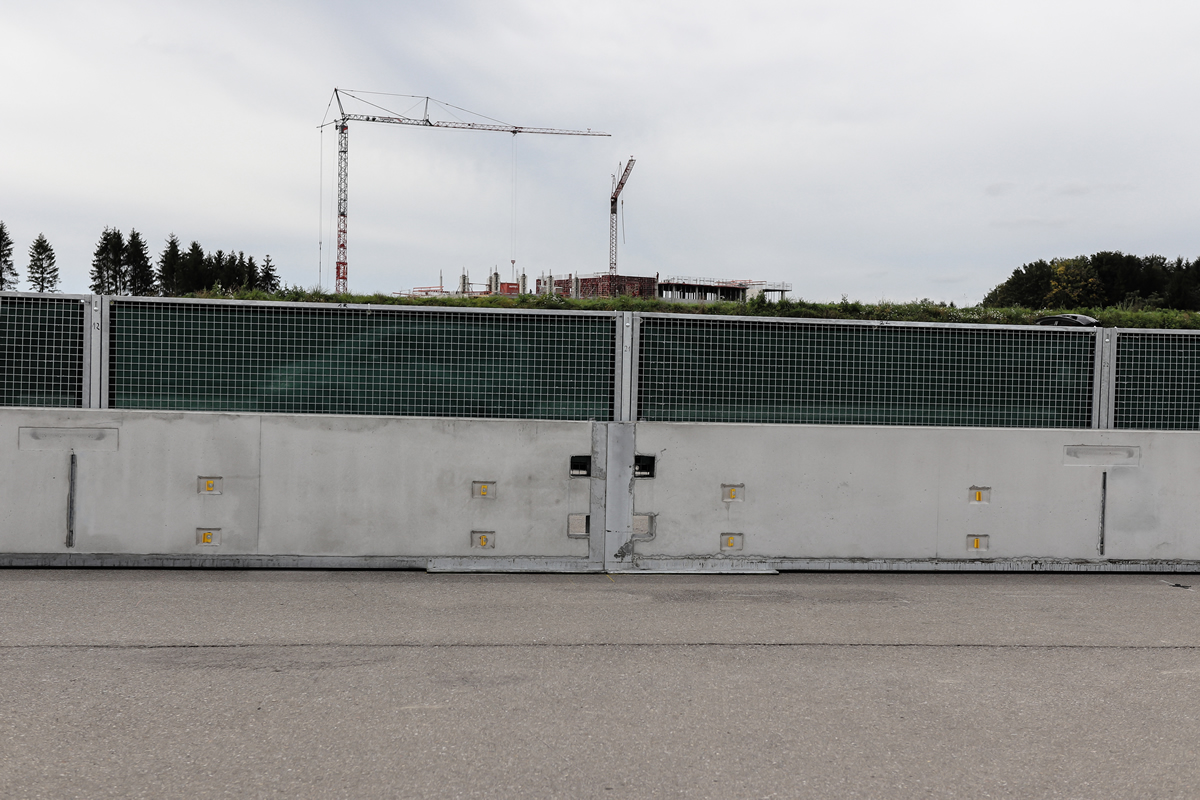

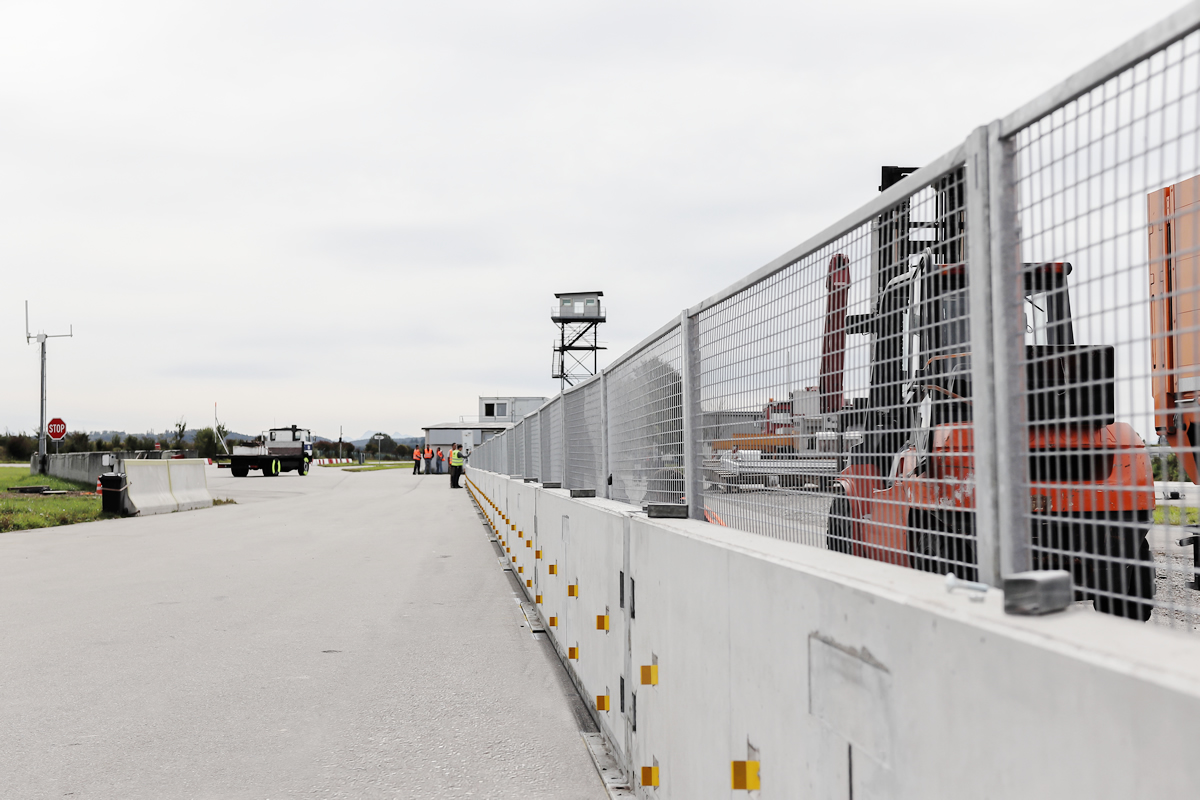

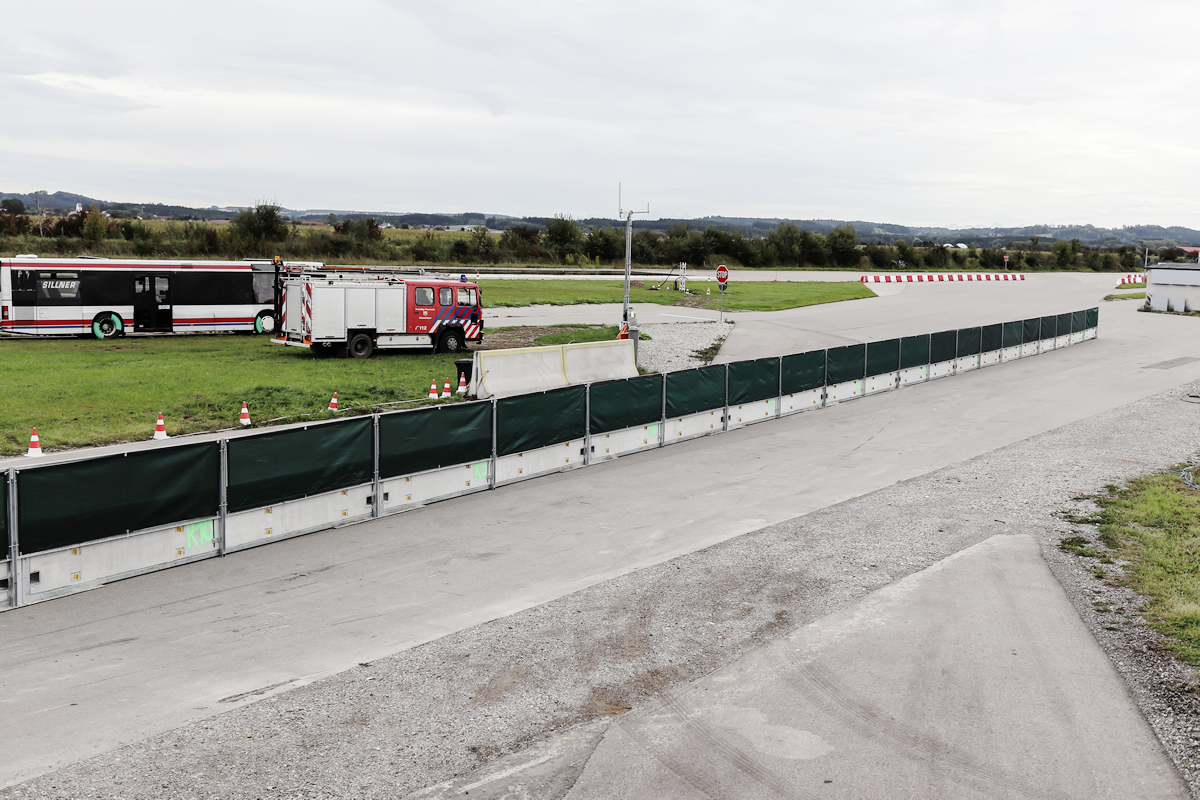

The fence is directly attached to the mobile concrete barriers without any ground anchoring. There are several impacts of the IBO Fence 150 in road work zones: First, there is a dependable visual protection for the road work area in general, for workers and traffic. Second, the top unit prevents misuse like climbing over the barriers.
Technical data
IBO Fence 150
BASt check 2024 7E 50 / Tested according to DIN EN 1317 (Unanchored)
| Acceptance test | TB 21 | TB 41 |
|---|---|---|
| Vehicle type | Car | Truck |
| Test date | 25.09.2019 | 25.09.2019 |
| Containment level | T3 | T3 |
| Test location | Fakt GmbH, Benningen | Fakt GmbH, Benningen |
| Test length / Minimum installation length |
96 m | 96 m |
| Ground anchoring | no | no |
| Terminal elements | not necessary, optional possible | not necessary, optional possible |
| System specification | TB 21 | TB 41 |
|---|---|---|
| Material | Steel and concrete | Steel and concrete |
| Height | 1,50 m | 1,50 m |
| Length of element | 6 m | 6 m |
| System width | 0,30 m | 0,30 m |
| Weight per m | 333 kg | 333 kg |
| Test result | TB 21 | TB 41 |
|---|---|---|
| Deflection | 0,3m | 0,7m |
| Area of influence | W1 | W2 |
| ASI-Value | 0,3 (A) | -- |
