DIN EN 1317

Passive safety barriers have to meet the requirements of DIN EN 1317 for road restraint systems. This must be proved by submission of test reports. Thereby all passive safety barriers are classified by performance. The definition of the performance classes is determined by the respective parts of DIN EN 1317.

DIN EN 1317-1

Terminology and general criteria for test methods

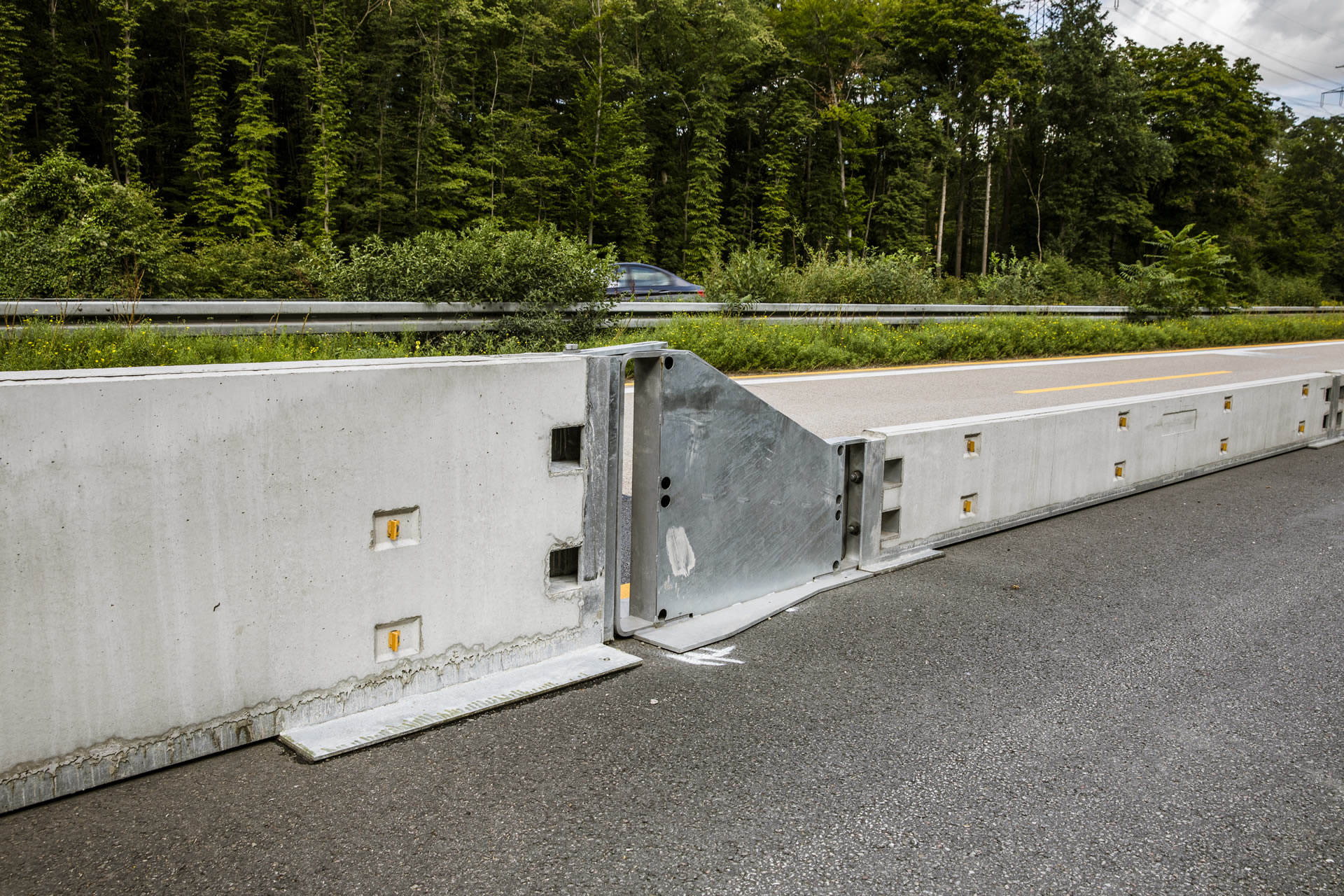

DIN EN 1317-2

Safety barriers

  • Containment level T1 to H4b or L4b (see below table 1)
  • Area of influence W1 to W8 (see below table 3)
  • Impact severity level A to C (see below table 4)

DIN EN 1317-3

Impact damper

  • Performance class / speed level
  • Class of permanent lateral displacement
  • Class of returning area
  • Impact severity
DIN EN 1317-4

Initial- and final design

  • Performance class
  • Class of rebound area
  • Class of permanent lateral deflection
  • Impact severity level

Transition design

  • Containment level
  • Area of influence
  • Impact severity level
DIN EN 1317-5

Product requirements and evaluation of conformity for vehicle restraint systems

Criteria for impact test (from DIN EN 1317-2) table 1
TEST Anprallgeschwindigkeit IMPACT ANGLE TOTAL MASS OF VEHICLE VEHICLE TYPE
TB 11 100 km/h 20° 900 kg Car
TB 21 80 km/h 8° 1300 kg Car
TB 22 80 km/h 15° 1300 kg Car
TB 31 80 km/h 20° 1500 kg Car
TB 32 110 km/h 20° 1500 kg Car
TB 41 70 km/h 8° 10000 kg Truck
TB 42 70 km/h 15° 10000 kg Truck
TB 51 70 km/h 20° 13000 kg Bus
TB 61 80 km/h 20° 16000 kg Truck
TB 71 65 km/h 20° 30000 kg Truck
TB 81 65 km/h 20° 30000 kg Semitrailer
Containment level (from DIN EN 1317-2) table 2
CONTAINMENT LEVEL ACCEPTANCE TEST
Containment capacity of temporary safety barrier T1 TB 21
Containment capacity of temporary safety barrier T2 TB 22
Containment capacity of temporary safety barrier T3 TB 21 und TB 41
Normal containment capacity N1 TB 31
Normal containment capacity N2 TB 32 und TB 11
Higher containment capacity H1 TB 42 und TB 11
Higher containment capacity L1 TB 42, TB 32 und TB 11
Higher containment capacity H2 TB 51 und TB 11
Higher containment capacity L2 TB 51, TB 32 und TB 11
Higher containment capacity H3 TB 61 und TB 11
Higher containment capacity L3 TB 61, TB 32 und TB 11
Very high containment capacity H4a TB 71 und TB 11
Very high containment capacity H4b TB 81 und TB 11
Very high containment capacity L4a TB 71 TB 32 und TB 11
Very high containment capacity L4b TB 81 TB 32 und TB 11
Area of influence (from DIN EN 1317-2) table 3
AREA OF INFLUENCE AREA OF INFLUENCE LEVEL
W1 W ≤ 0,6 m
W2 W ≤ 0,8 m
W3 W ≤ 1,0 m
W4 W ≤ 1,3 m
W5 W ≤ 1,7 m
W6 W ≤ 2,1 m
W7 W ≤ 2,5 m
W8 W ≤ 3,5 m
Impact severity level (from DIN EN 1317-2) table 4
IMPACT SEVERITY LEVEL PARAMETERS
A ASI ≤ 1,0 and THIV ≤ 33 km/h
B ASI ≤ 1,4 and THIV ≤ 33 km/h
c ASI ≤ 1,9 and THIV ≤ 33 km/h
